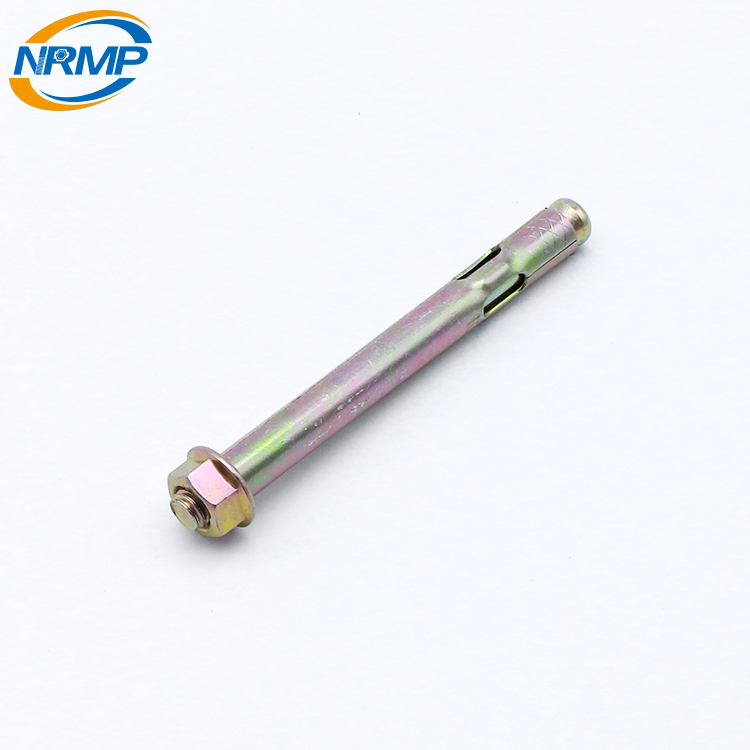

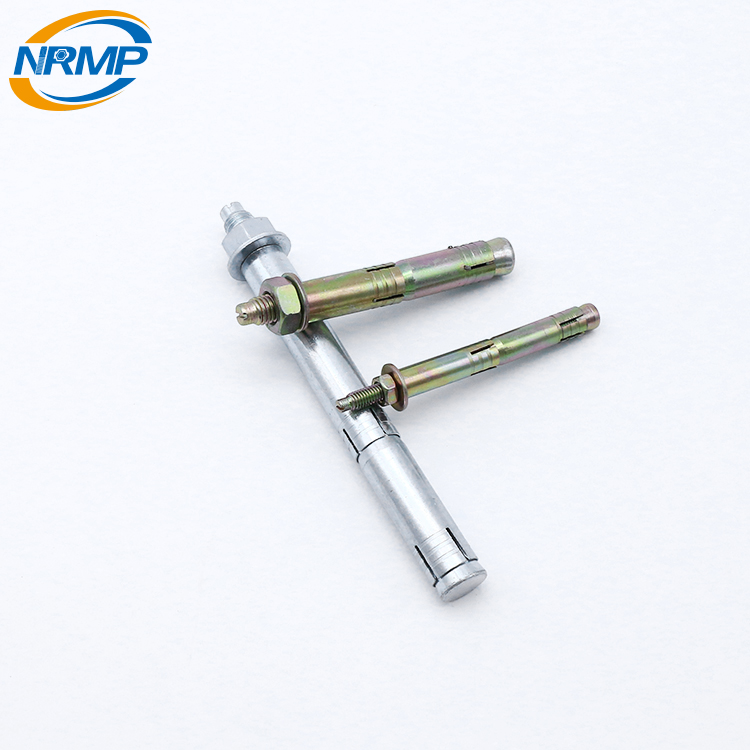

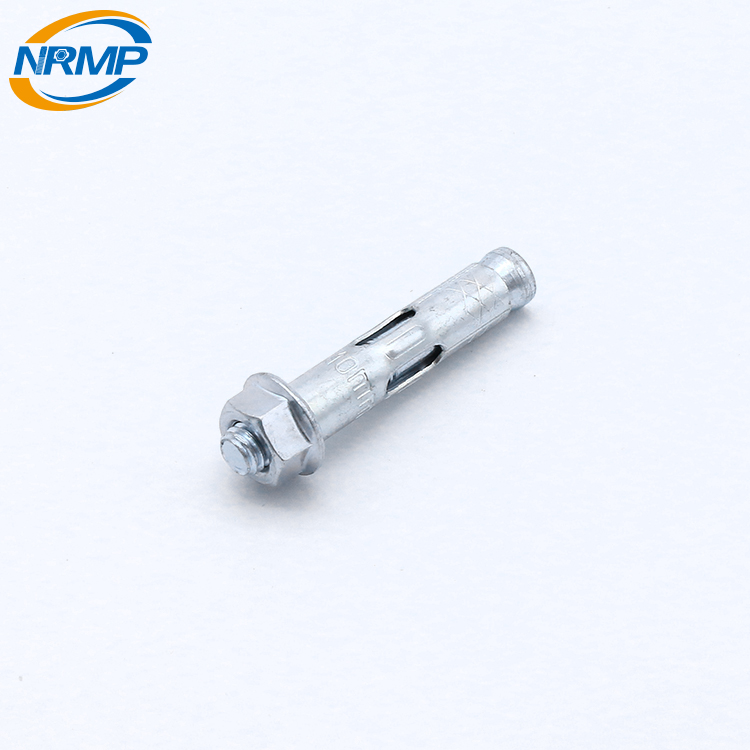

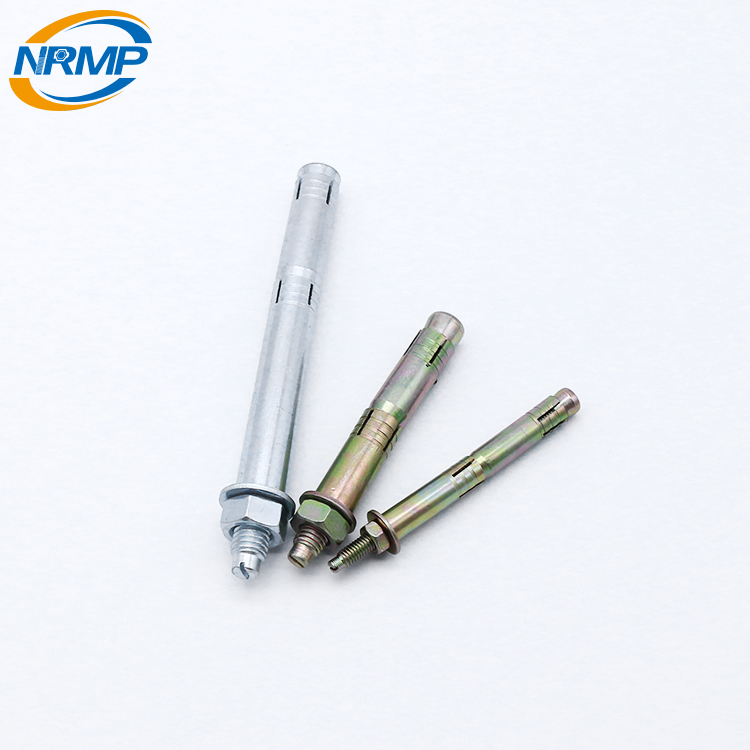

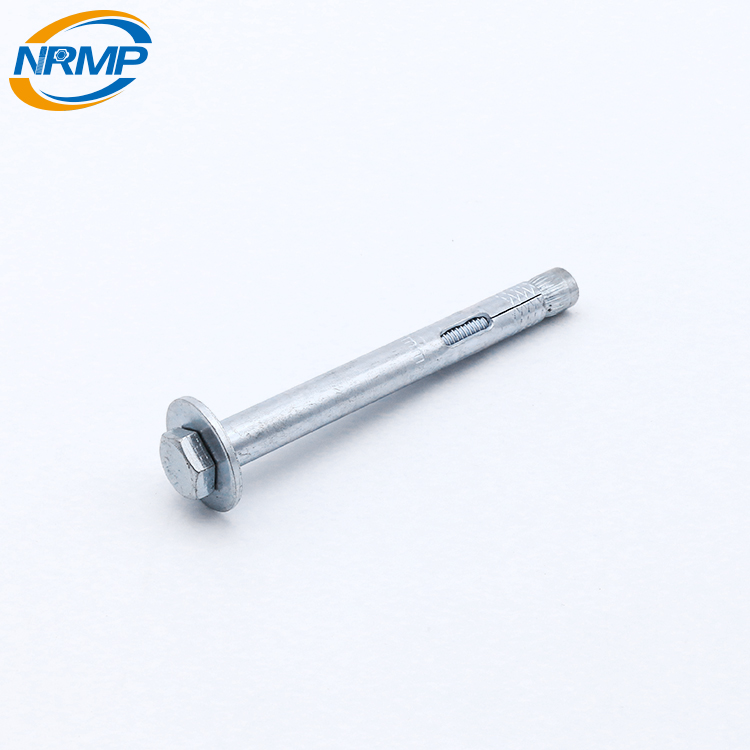

The Sleeve Anchor is constructed of high quality steel parts.Each part is zinc plated and assembled into a complete ready-to-use anchor.The anchor consists of a threaded stud with an out wardly flared cone-shaped end.A tubular expander sleeve is assembled over the stud and butted against the small diameter of the cone.A washer and hex nut are then assembled on thestud to complete the anchor.The anchor works on a true expansion principle:Tightening of the nut pulls the cone shaped stud end into the expander sleeve,wedging
it outward and locking the anchor into the base material.

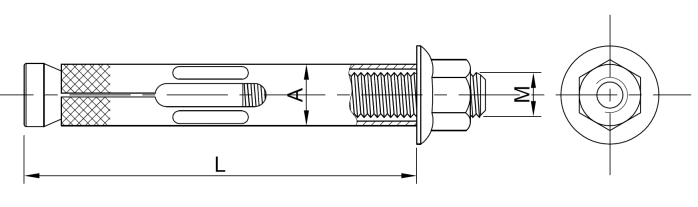

Product Code | Size MxAxL | Weight | Product Code | Size MxAxL | Weight | |
ZXPZ-TG0035 | M5-0.8x6.5x18 | 6.00 | ZXPZ-TG0055 | M10-1.5x12x100 | 88.00 | |
ZXPZ-TG0036 | M5-0.8x6.5x25 | 8.00 | ZXPZ-TG0056 | M10-1.5x12x130 | 108.00 | |
ZXPZ-TG0037 | M5-0.8x6.5x36 | 9.00 | ZXPZ-TG0057 | M10-1.5x12x150 | 120.00 | |
ZXPZ-TG0038 | M5-0.8x6.5x56 | 13.30 | ZXPZ-TG0058 | M10-1.5x12x60 | 59.50 | |
ZXPZ-TG0039 | M5-0.8x6.5x75 | 18.30 | ZXPZ-TG0059 | M10-1.5x12x75 | 69.40 | |
ZXPZ-TG0040 | M6-1.0x8x100 | 32.00 | ZXPZ-TG0060 | M12-1.75x16x110 | 159.00 | |
ZXPZ-TG0041 | M6-1.0x8x120 | 37.00 | ZXPZ-TG0061 | M12-1.75x16x147 | 200.00 | |
ZXPZ-TG0042 | M6-1.0x8x25 | 12.00 | ZXPZ-TG0062 | M12-1.75x16x150 | 205.00 | |
ZXPZ-TG0043 | M6-1.0x8x40 | 16.00 | ZXPZ-TG0063 | M12-1.75x16x180 | 245.00 | |
ZXPZ-TG0044 | M6-1.0x8x65 | 23.30 | ZXPZ-TG0064 | M12-1.75x16x200 | 270.00 | |
ZXPZ-TG0045 | M6-1.0x8x85 | 30.00 | ZXPZ-TG0065 | M12-1.75x16x220 | 295.00 | |
ZXPZ-TG0046 | M8-1.25x10x100 | 56.00 | ZXPZ-TG0066 | M12-1.75x16x250 | 332.00 | |
ZXPZ-TG0047 | M8-1.25x10x125 | 62.80 | ZXPZ-TG0067 | M12-1.75x16x65 | 103.00 | |
ZXPZ-TG0048 | M8-1.25x10x130 | 64.50 | ZXPZ-TG0068 | M16-2.0x20x107 | 270.00 | |
ZXPZ-TG0049 | M8-1.25x10x40 | 28.75 | ZXPZ-TG0069 | M16-2.0x20x110 | 276.40 | |
ZXPZ-TG0050 | M8-1.25x10x50 | 32.50 | ZXPZ-TG0070 | M16-2.0x20x130 | 266.20 | |
ZXPZ-TG0051 | M8-1.25x10x60 | 37.50 | ZXPZ-TG0071 | M16-2.0x20x150 | 356.00 | |
ZXPZ-TG0052 | M8-1.25x10x77 | 45.60 | ZXPZ-TG0072 | M16-2.0x20x151 | 360.00 | |
ZXPZ-TG0053 | M8-1.25x10x80 | 46.75 | ZXPZ-TG0073 | M16-2.0x20x200 | 420.00 | |
ZXPZ-TG0054 | M8-1.25x10x97 | 54.80 | ZXPZ-TG0074 | M16-2.0x20x300 | 520.00 | |
ZXPZ-TG0075 | M16-2.0x20x75 | 202.00 |
Product Code | MxAxL | Diameter Hole(mm) | Weight | |||||
ZXPZ-TG0076 | 3/16x1/4x1-3/8 | 6.5 | 7.50 | |||||
ZXPZ-TG0077 | 3/16x1/4x2-1/4 | 6.5 | 11.50 | |||||
ZXPZ-TG0078 | 3/16x1/4x2-1/2 | 6.5 | 13.00 | |||||
ZXPZ-TG0079 | 1/4x5/16x1-1/2 | 8.0 | 16.70 | |||||
ZXPZ-TG0080 | 1/4x5/16x1-7/8 | 8.0 | 18.00 | |||||
ZXPZ-TG0081 | 1/4x5/16x2-1/2 | 8.0 | 24.20 | |||||
ZXPZ-TG0082 | 1/4x5/16x3 | 8.0 | 26.00 | |||||
ZXPZ-TG0083 | 1/4x5/16x3-1/2 | 8.0 | 31.00 | |||||
ZXPZ-TG0084 | 5/16x3/8x1-7/8 | 9.5 | 28.90 | |||||
ZXPZ-TG0085 | 5/16x3/8x2-1/2 | 9.5 | 37.00 | |||||
ZXPZ-TG0086 | 5/16x3/8x3 | 9.5 | 40.90 | |||||
ZXPZ-TG0087 | 5/16x3/8x3-1/2 | 9.5 | 47.00 | |||||
ZXPZ-TG0088 | 5/16x3/8x4 | 9.5 | 51.40 | |||||
ZXPZ-TG0089 | 3/8x1/2x2-1/4 | 12.7 | 49.00 | |||||
ZXPZ-TG0090 | 3/8x1/2x2-3/4 | 12.7 | 60.00 | |||||
ZXPZ-TG0091 | 3/8x1/2x3 | 12.7 | 64.70 | |||||
ZXPZ-TG0092 | 3/8x1/2x4 | 12.7 | 83.60 | |||||
ZXPZ-TG0093 | 3/8x1/2x5 | 12.7 | 103.40 | |||||
ZXPZ-TG0094 | 3/8x1/2x6 | 12.7 | 119.20 | |||||
ZXPZ-TG0095 | 1/2x5/8x2-1/4 | 16.0 | 102.50 | |||||
ZXPZ-TG0096 | 1/2x5/8x2-1/2 | 16.0 | 109.20 | |||||
ZXPZ-TG0097 | 1/2x5/8x3 | 16.0 | 128.00 | |||||
ZXPZ-TG0098 | 1/2x5/8x4-1/4 | 16.0 | 163.50 | |||||
