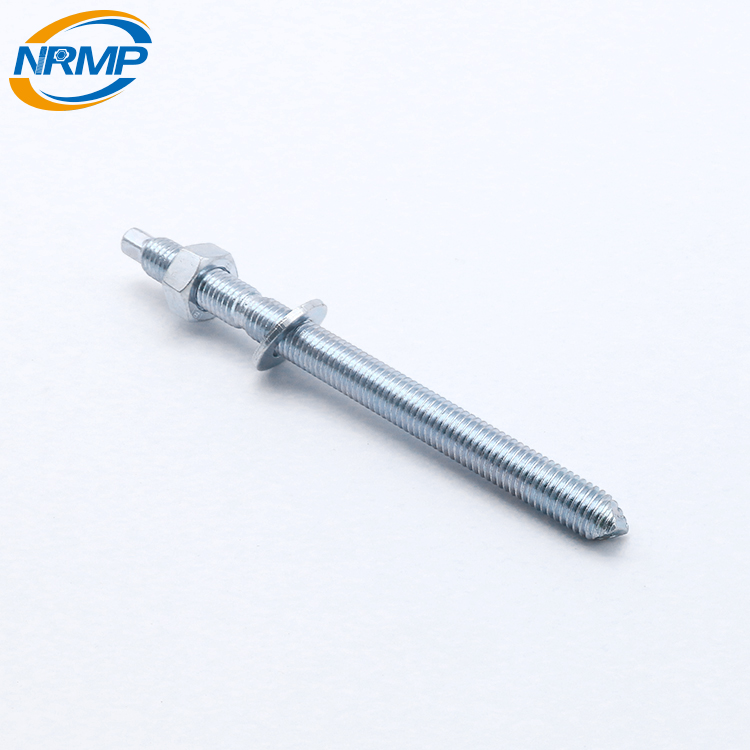

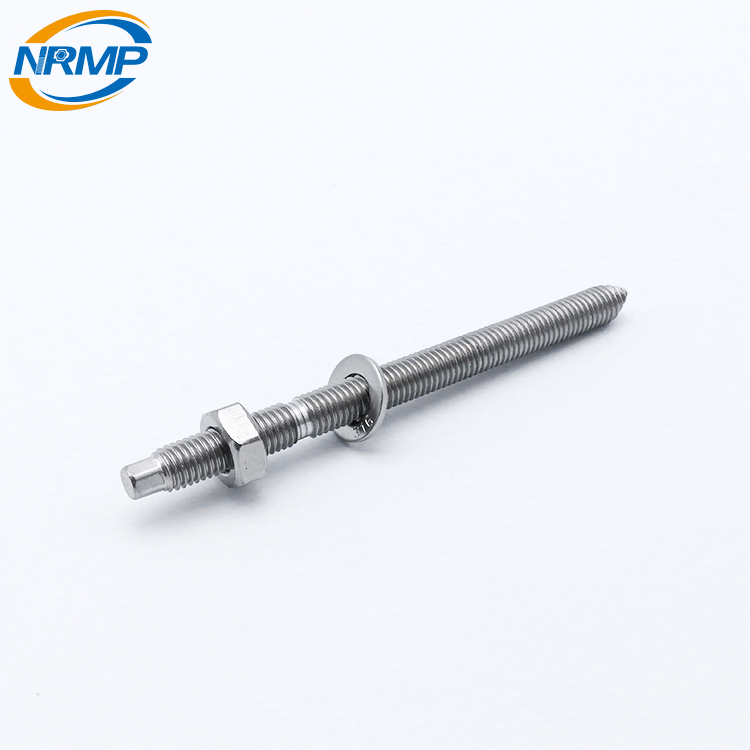

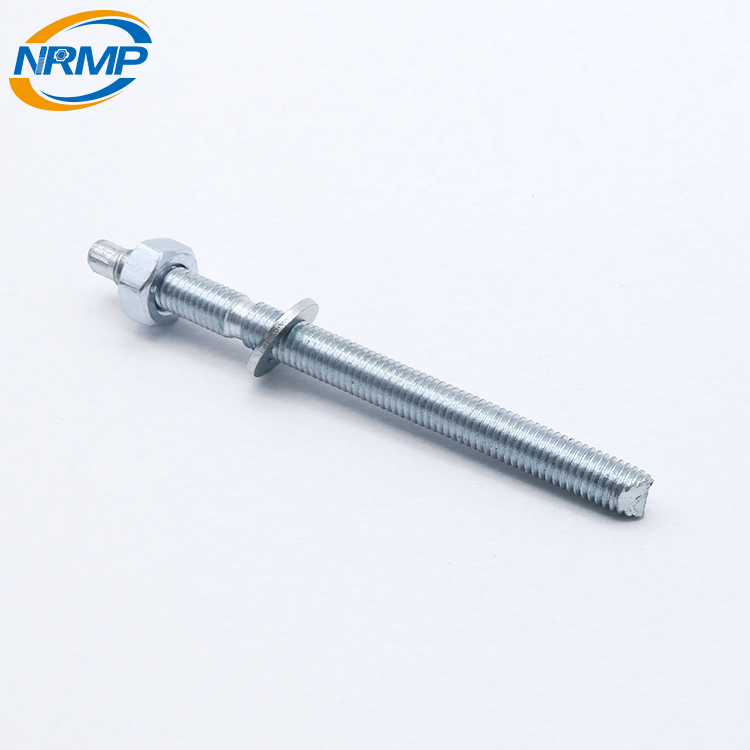

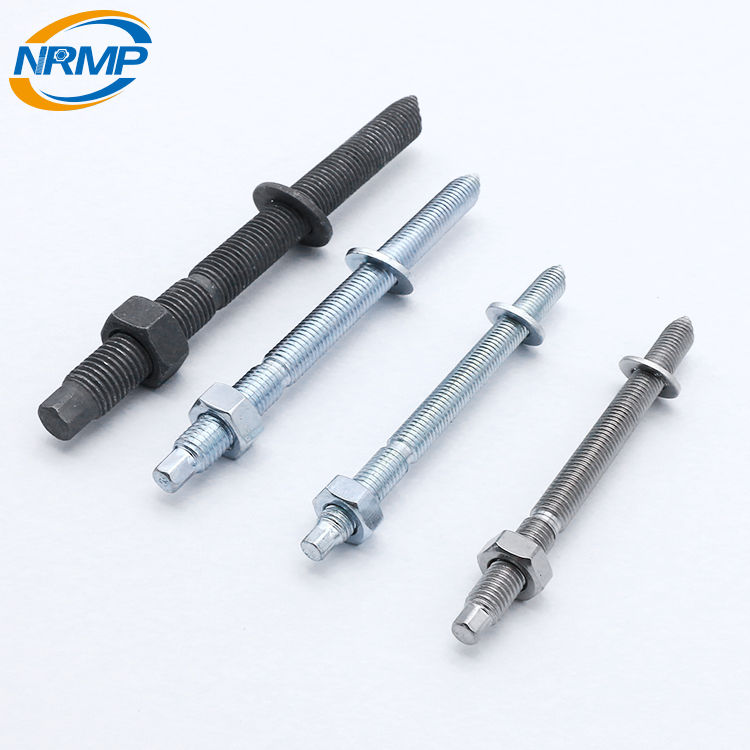

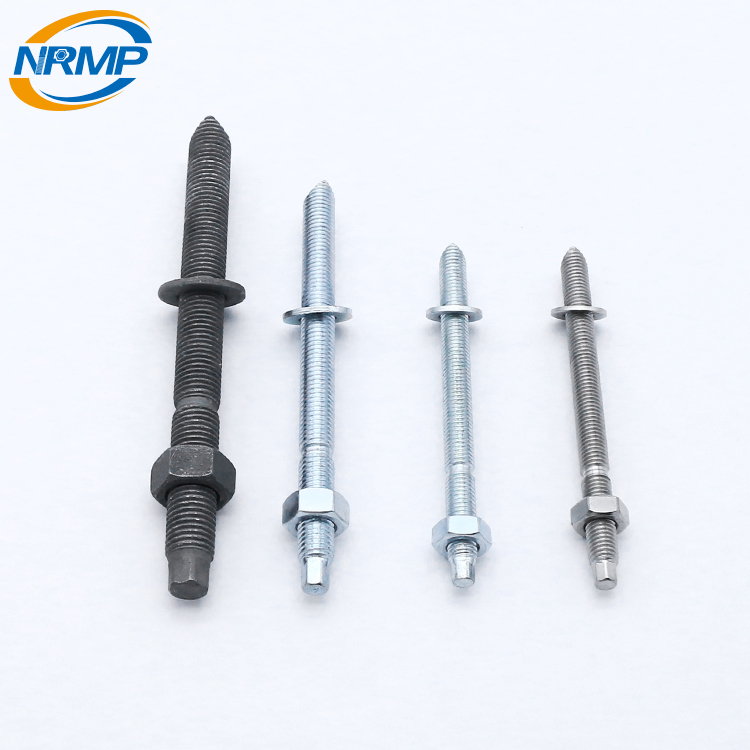

The Chemical anchor stud is a high performance resin anchor system for use in safety critical applications. The system relies on the adhesion between the concrete and resin, which is free from expansion forces. This makes it an ideal choice where there are close edge and spacing distances.
Features: 1.high performance 2.quick and easy to install 3.capsule contains exact amounts of ingredients making it a very consistent product 4.adhesive strength is not affected by unpolluted water(curing time will be affected) 5.suitable for overhead applications 6.suitable for use in wet conditions.

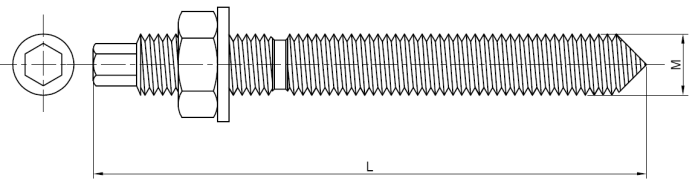

Product Code | Size MxL | Weight | Pcs/BOX | Pcs/CTN |
ZXPZ-QT0001 | M8x110 | 39.23 | 10 | 200 |
ZXPZ-QT0002 | M10x130 | 74.17 | 10 | 200 |
ZXPZ-QT0003 | M10x160 | 92.60 | 10 | 200 |
ZXPZ-QT0004 | M12x160 | 129.67 | 10 | 100 |
ZXPZ-QT0005 | M12x220 | 186.58 | 10 | 100 |
ZXPZ-QT0006 | M12x250 | 213.30 | 10 | 80 |
ZXPZ-QT0007 | M12x300 | 258.00 | 10 | 60 |
ZXPZ-QT0008 | M14x170 | 193.00 | 10 | 80 |
ZXPZ-QT0009 | M14x220 | 254.00 | 10 | 60 |
ZXPZ-QT0010 | M16x190 | 281.00 | 10 | 60 |
ZXPZ-QT0011 | M16x250 | 370.00 | 10 | 40 |
ZXPZ-QT0012 | M20x220 | 480.00 | 5 | 30 |
ZXPZ-QT0013 | M20x260 | 579.20 | 5 | 30 |
ZXPZ-QT0014 | M24x300 | 965.80 | 5 | 20 |
ZXPZ-QT0015 | M30x380 | 1,600.00 | 5 | 10 |
