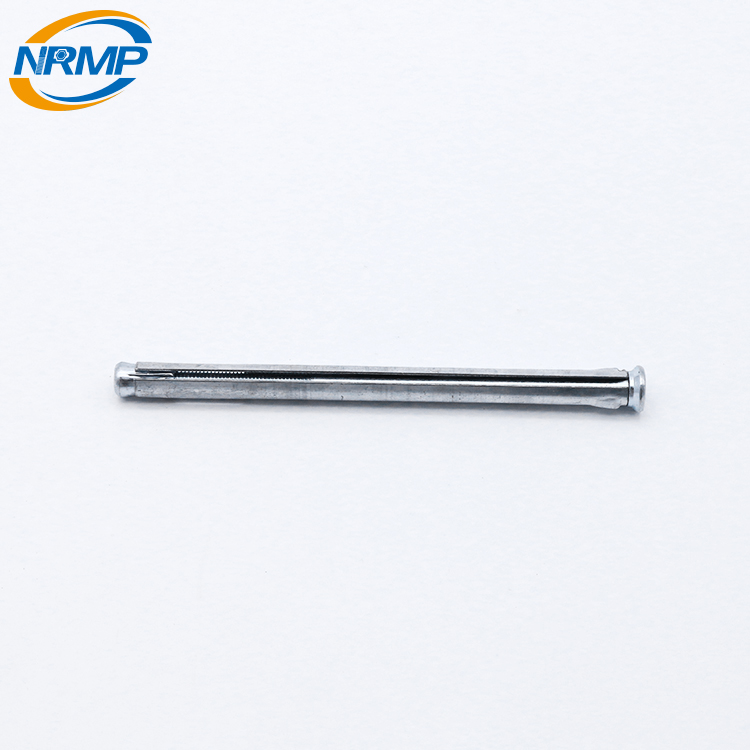

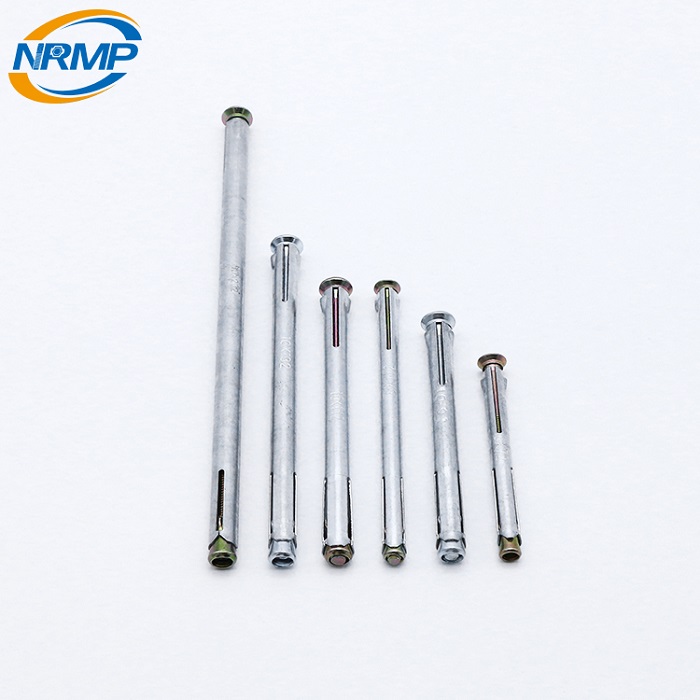

Description: For distortion-free installation of metal frames. No marking out-fixes straight through the fixture into the substrate.
Features: Anti-rotation lugs prevent rotation during tightening. All steel construction for strength and durability. Metal sleeve design avoids frame distortion during tightening up.
Suitable for use in: Concrete Stone Brickwork & Blockwork
NB. Not suitable for hollow brickwork.
Typical applications: Fixes door and window frames to most types of building material. Easy fixing for metal-framed doors and windows. Perfect for installing patio doors.
Product Code | Size MxdxL | Weight | Pcs/BOX | Pcs/CTN |
QXPZ-ZKBH0001 | M5-0.8x8x72 | 20.30 | 100 | 1,000 |
QXPZ-ZKBH0002 | M5-0.8x8x92 | 28.00 | 100 | 1,000 |
QXPZ-ZKBH0003 | M5-0.8x8x112 | 29.60 | 100 | 800 |
QXPZ-ZKBH0004 | M5-0.8x8x132 | 34.10 | 100 | 800 |
QXPZ-ZKBH0005 | M5-0.8x8x152 | 41.20 | 100 | 600 |
QXPZ-ZKBH0006 | M5-0.8x8x172 | 49.90 | 100 | 400 |
QXPZ-ZKBH0007 | M6-1.0x10x52 | 18.85 | 100 | 1,000 |
QXPZ-ZKBH0008 | M6-1.0x10x72 | 29.40 | 100 | 600 |
QXPZ-ZKBH0009 | M6-1.0x10x92 | 36.40 | 100 | 600 |
QXPZ-ZKBH0010 | M6-1.0x10x112 | 40.60 | 100 | 600 |
QXPZ-ZKBH0011 | M6-1.0x10x132 | 47.60 | 100 | 400 |
QXPZ-ZKBH0012 | M6-1.0x10x152 | 54.40 | 100 | 400 |
QXPZ-ZKBH0013 | M6-1.0x10x182 | 61.00 | 100 | 400 |
QXPZ-ZKBH0014 | M6-1.0x10x202 | 70.50 | 100 | 400 |
