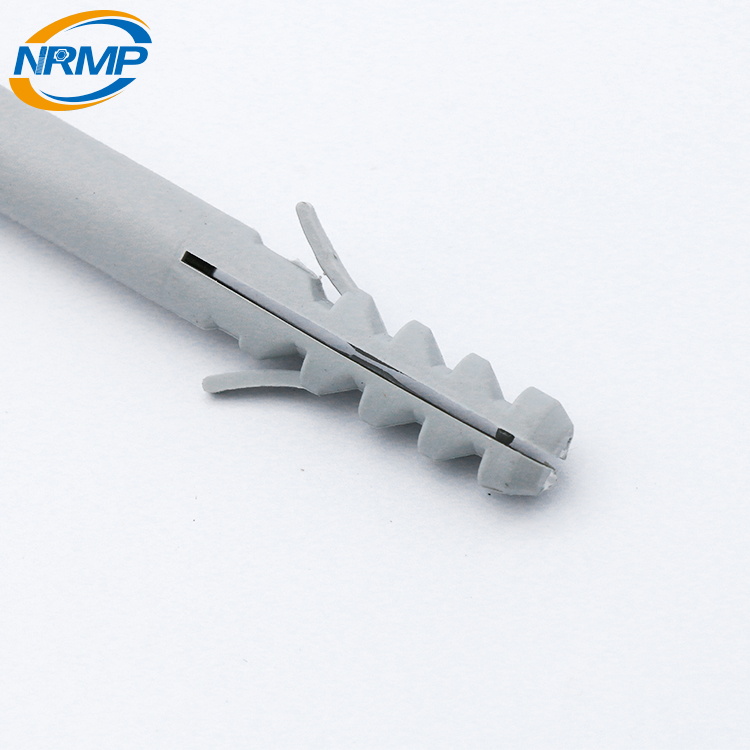

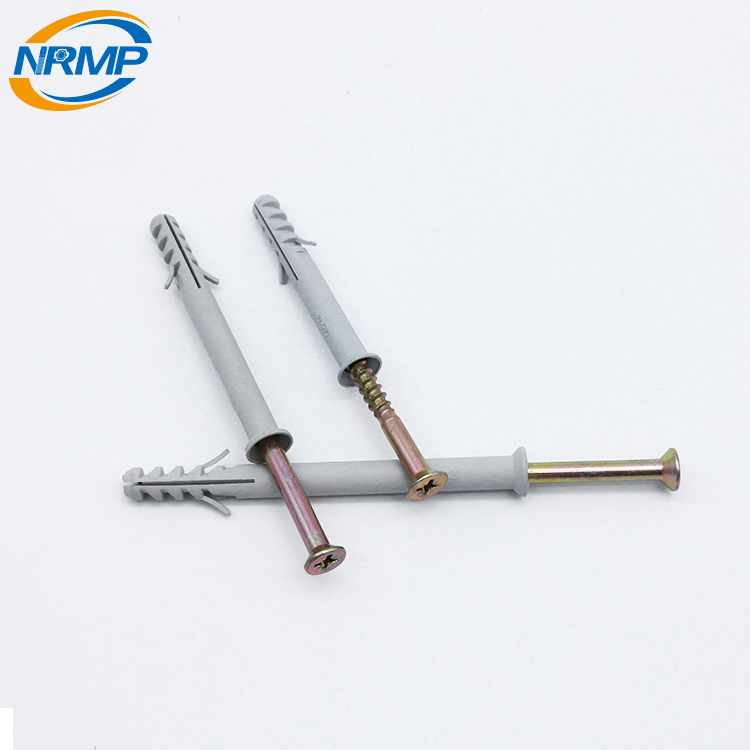

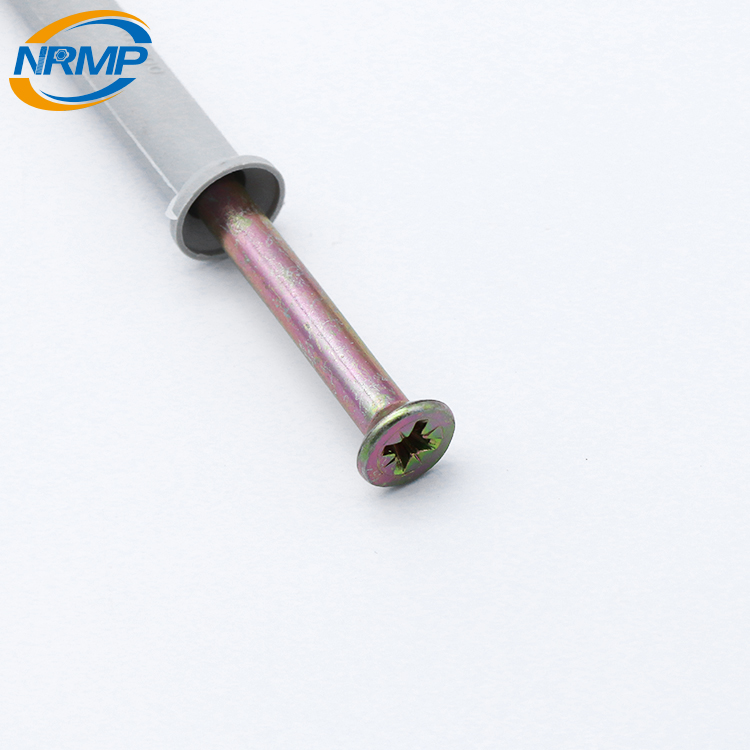

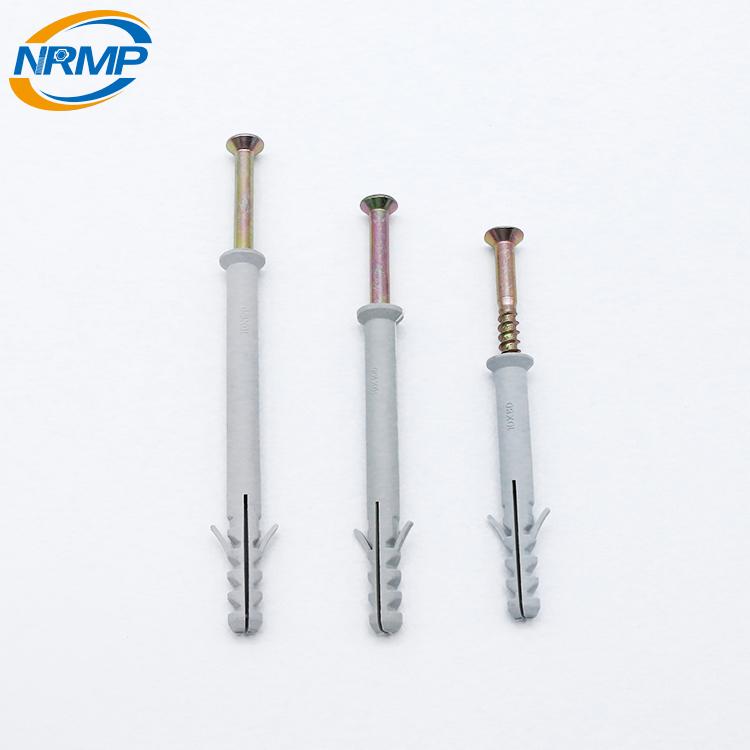

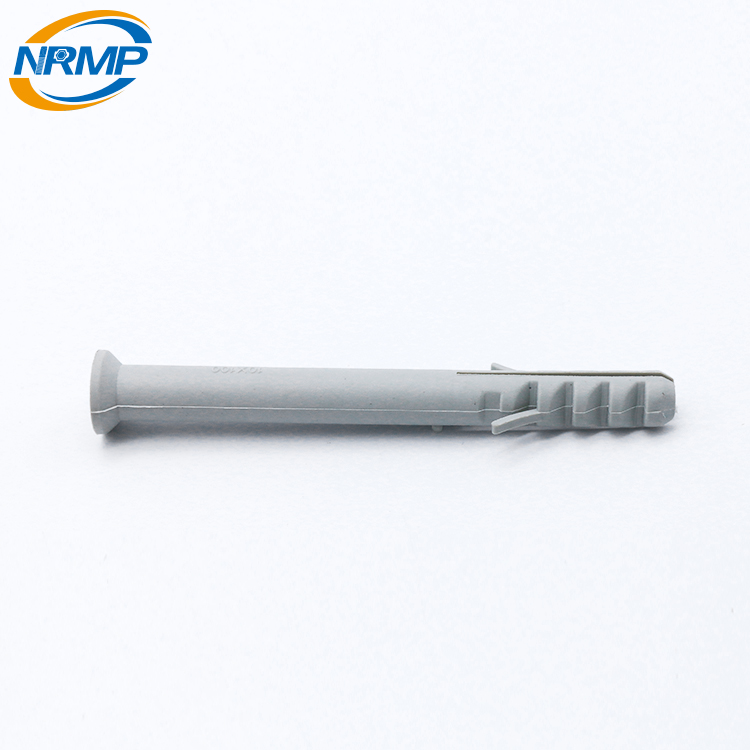

· Nylon Frame Anchors are preassembled screw and plug fasteners for use with window frames.
· The NFA provides a high strength fasten for window frames to a variety of base materials.
· The NFA is installed through a pre-drilled hole through the frame and into the base material.
· If necessary, the screw can be removed and reinstalled.
· NFA anchors are well suited for use with plastic window frames, and are suitable for fixture thicknesses of 20mm to 110mm.

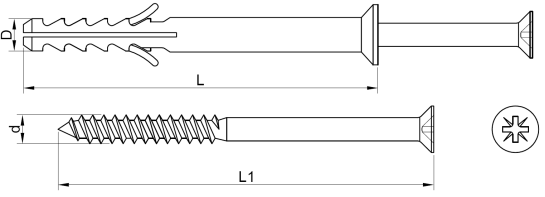

Product Code | Type | Size | Weight |
QXPZ-SLBH0001 | With CSK Wood Screw | 6x40-4.0x45 | 4.10 |
QXPZ-SLBH0002 | With CSK Wood Screw | 6x60-4.0x65 | 6.60 |
QXPZ-SLBH0003 | With CSK Wood Screw | 6x80-4.0x85 | 9.10 |
QXPZ-SLBH0004 | With CSK Wood Screw | 8x60-5.5x70 | 9.80 |
QXPZ-SLBH0005 | With CSK Wood Screw | 8x80-5.5x85 | 12.70 |
QXPZ-SLBH0006 | With CSK Wood Screw | 8x100-5.5x105 | 16.30 |
QXPZ-SLBH0007 | With CSK Wood Screw | 8x120-5.5x125 | 19.85 |
QXPZ-SLBH0008 | With CSK Wood Screw | 8x135-5.5x140 | 22.55 |
QXPZ-SLBH0009 | With CSK Wood Screw | 10x60-7.0x65 | 22.40 |
QXPZ-SLBH0010 | With CSK Wood Screw | 10x80-7.0x85 | 25.10 |
QXPZ-SLBH0011 | With CSK Wood Screw | 10x100-7.0x105 | 27.80 |
QXPZ-SLBH0012 | With CSK Wood Screw | 10x115-7.0x120 | 29.80 |
QXPZ-SLBH0013 | With CSK Wood Screw | 10x135-7.0x140 | 35.80 |
QXPZ-SLBH0014 | With CSK Wood Screw | 10x160-7.0x165 | 42.00 |
