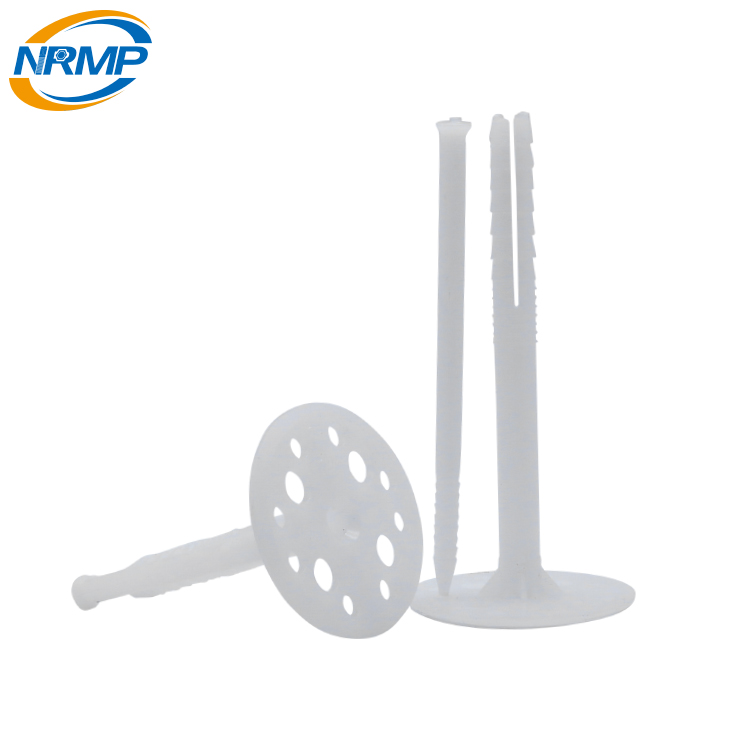

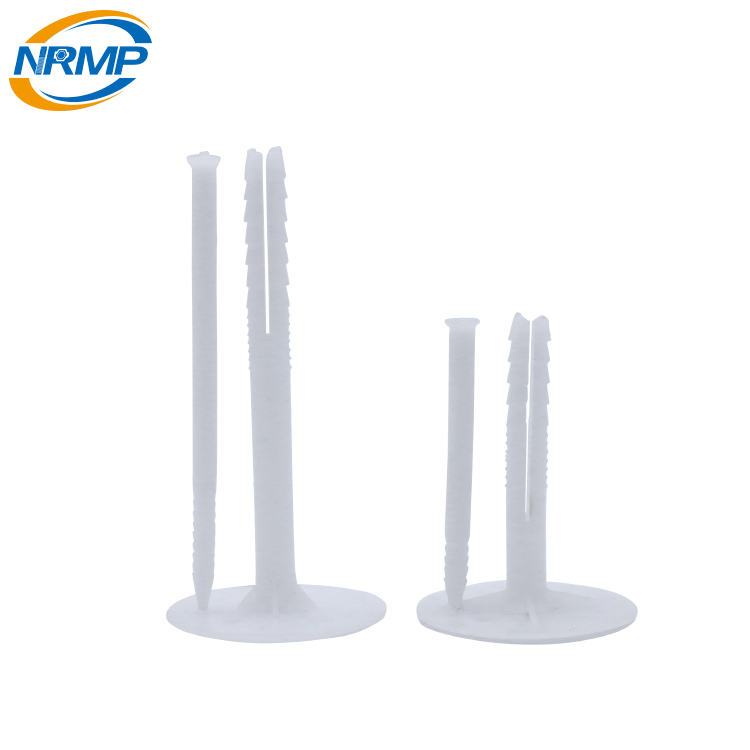

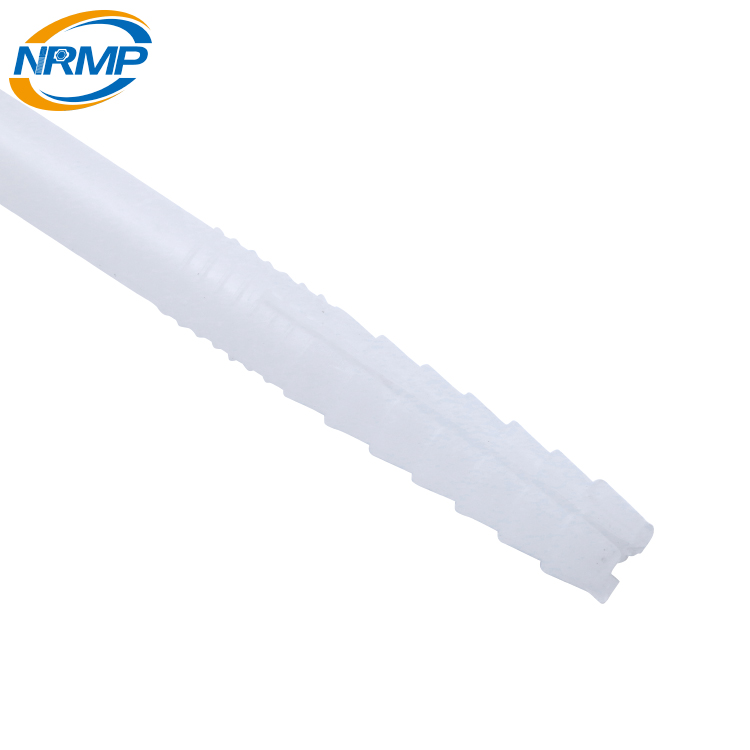

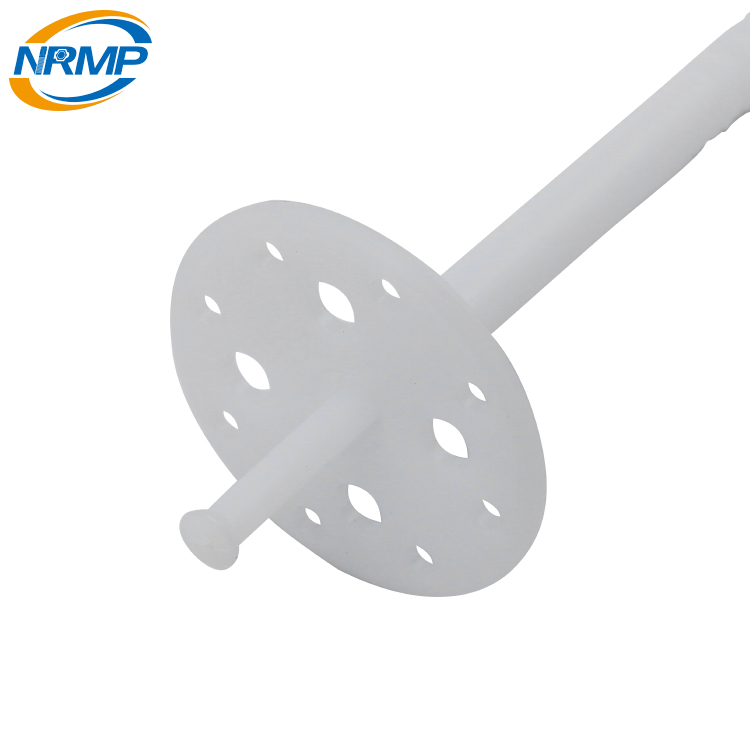

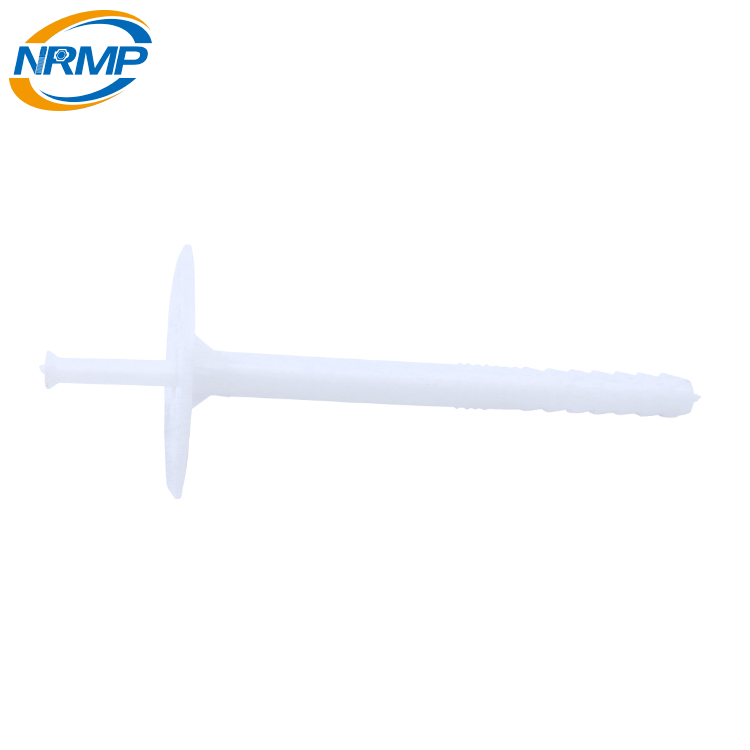

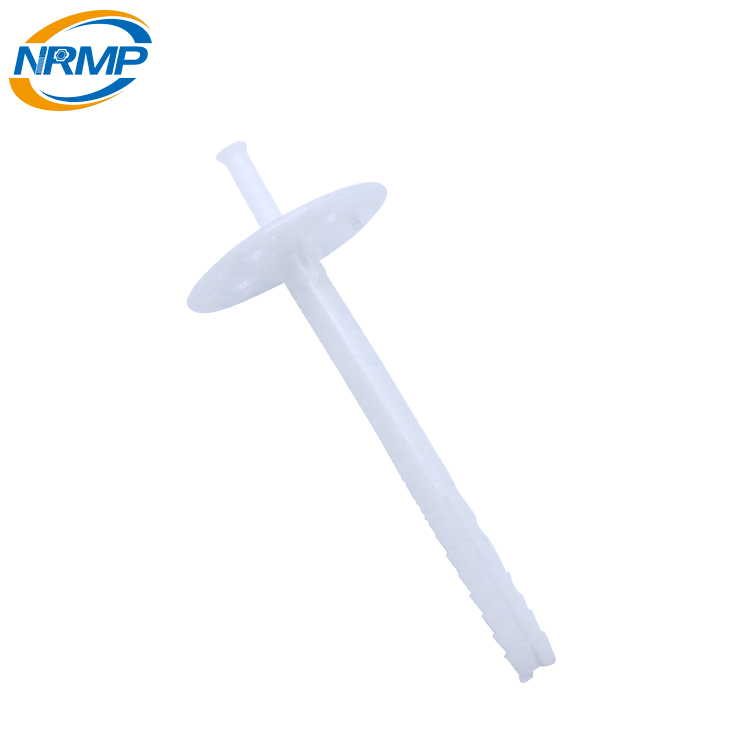

Universal Insulation and EML Anchor pre-assembled through fixing for rigid insulation materials and expanded metal lathe. Quick and easy to install into a wide range of solid base material. Head diameter is 50mm. Hole Diameter is 10mm. Drill hole through insulation and substrate to required depth. Insert the body of the fixing. Drive home the nylon pin. Fixing capacities are as follows: Other types and sizes available to order.
Product Code | Size | Weight | Pcs/CTN |
BWB-BWD0022 | 10x70 | 7.10 | 1,000 |
BWB-BWD0023 | 10x80 | 8.80 | 1,000 |
BWB-BWD0024 | 10x90 | 9.50 | 1,000 |
BWB-BWD0025 | 10x100 | 9.80 | 1,000 |
BWB-BWD0026 | 10x110 | 10.50 | 800 |
BWB-BWD0027 | 10x120 | 11.00 | 800 |
BWB-BWD0028 | 10x130 | 11.30 | 800 |
BWB-BWD0029 | 10x140 | 11.90 | 800 |
BWB-BWD0030 | 10x160 | 12.80 | 600 |
BWB-BWD0031 | 10x180 | 14.08 | 600 |
BWB-BWD0032 | 10x200 | 15.30 | 600 |
BWB-BWD0033 | 10x220 | 16.60 | 600 |
