Zinc Alloy Hit Anchor

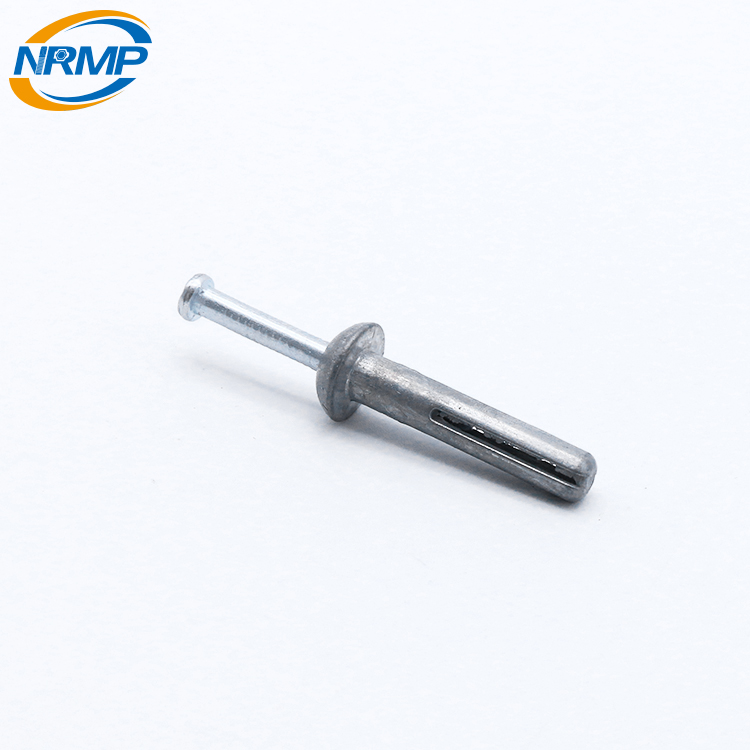

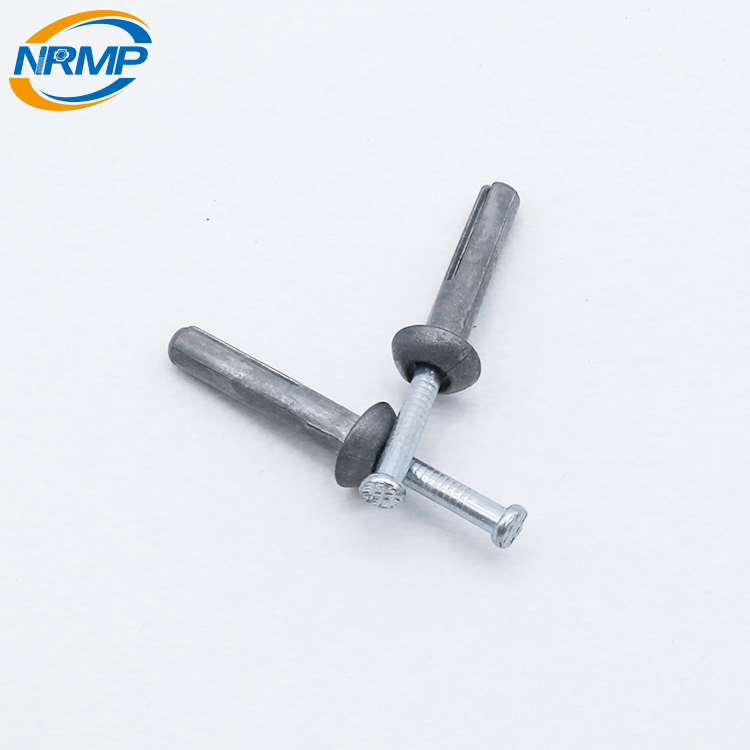

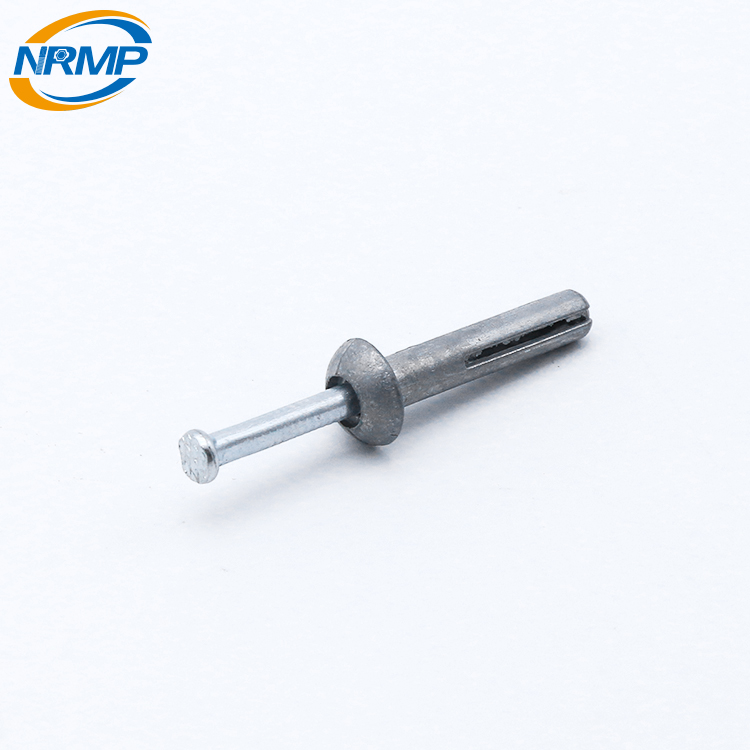

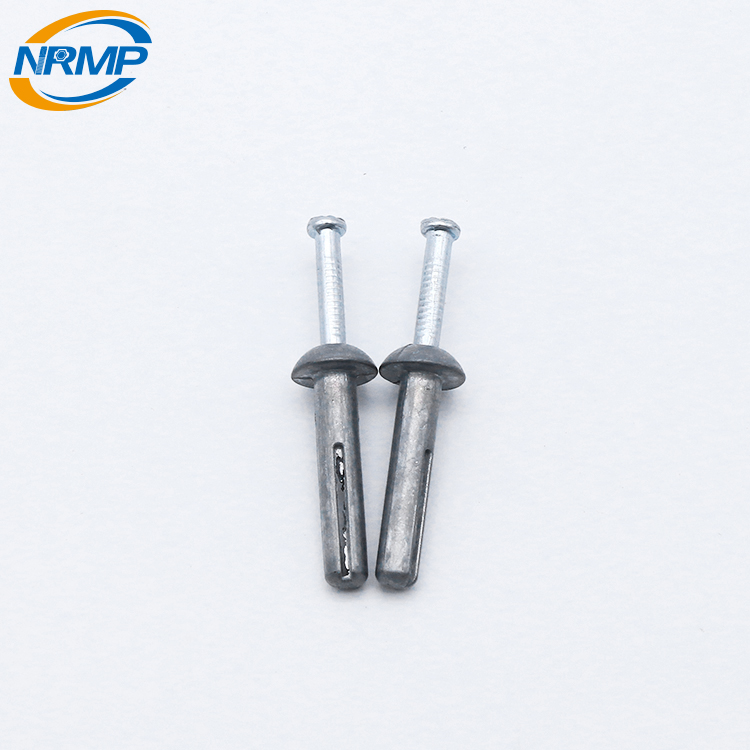

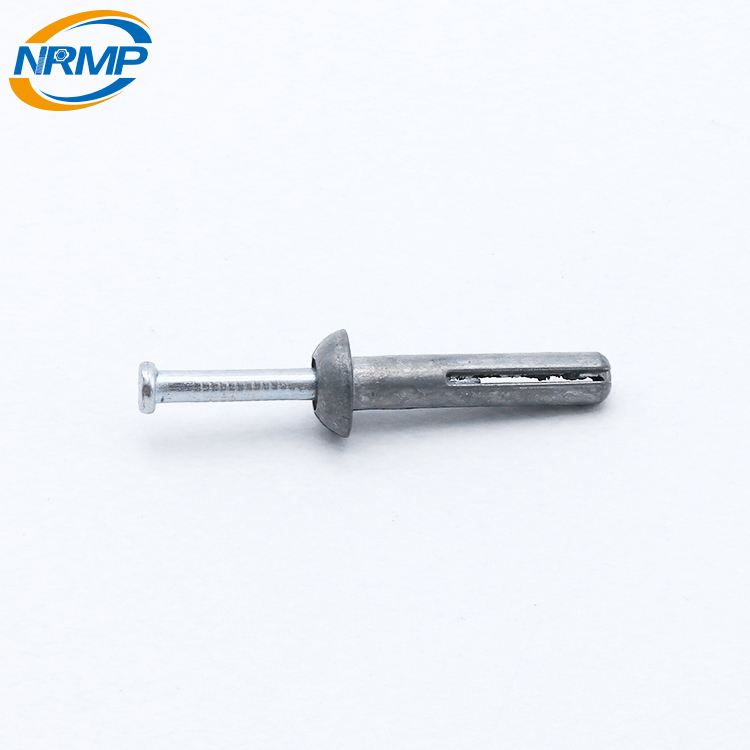

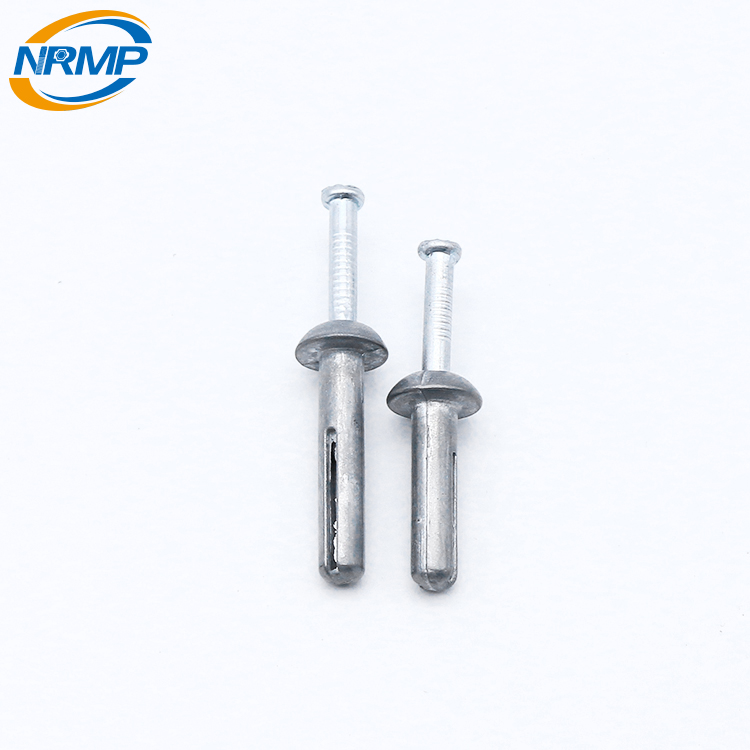

The Hit Anchor is a precision die-cast, light-duty concrete anchor combining unusual toughness and remarkable strength. The Metal Hit anchor consists of a cylindrical zinc alloy body and a zinc plated steel pin expander. The shank, from the bottom up, is split a major portion of its length. The anchor body has a bore which runs through the head thickness and into the shank for a depth just beyond the point where the slot terminates in the body. The steel pin expander is made of high carbon steel, properly heat treated, and heavily zinc plated for maximum corrosion resistance.

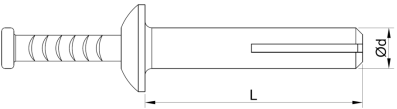

Product Code | Size dxL | Max Fixture Thickness(mm) | Weight | Pcs/BOX | Pcs/CTN |
QXPZ-XQBH0001 | 3/16x7/8 | 1/4" | 4.10 | 200 | 2,000 |
QXPZ-XQBH0002 | 1/4x3/4 | 3/16" | 7.10 | 100 | 1,000 |
QXPZ-XQBH0003 | 1/4x1 | 1/4" | 7.70 | 100 | 1,000 |
QXPZ-XQBH0004 | 1/4x1-1/4 | 1/2" | 8.70 | 100 | 1,000 |
QXPZ-XQBH0005 | 1/4x1-1/2 | 3/4" | 10.20 | 100 | 1,000 |
QXPZ-XQBH0006 | 1/4x2 | 1-1/4" | 12.90 | 100 | 1,000 |
QXPZ-XQBH0007 | 1/4x2-1/2 | 1-1/4" | 15.30 | 100 | 1,000 |
QXPZ-XQBH0008 | 1/4x3 | 1-1/4" | 17.60 | 100 | 1,000 |
QXPZ-XQBH0009 | M5X22 | 6" | 4.10 | 200 | 2,000 |
QXPZ-XQBH0010 | M6X30 | 12" | 8.10 | 100 | 1,000 |
QXPZ-XQBH0011 | M6X40 | 18" | 9.50 | 100 | 1,000 |
QXPZ-XQBH0012 | M6X50 | 28" | 11.10 | 100 | 1,000 |
QXPZ-XQBH0013 | M6X65 | 32" | 14.10 | 100 | 1,000 |
